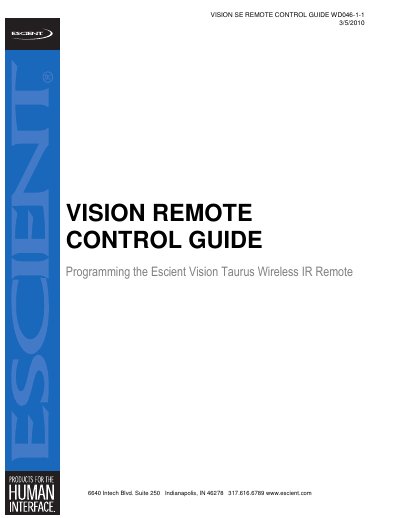

This document describes how to use the remote control for the Vision server products, including how to program the remote control and how to use the remote control to control other devices
This guide explains how to program the Vision Taurus wireless IR remote, including assigning the four R‑source buttons to specific Vision units and configuring the universal source buttons (TV, CBL, DVD, RCV) for other devices. It also covers resetting the remote to factory defaults and using macro keys for multi‑command sequences.
Appendices provide a comprehensive list of universal device codes and the RC6 Mode 6A IR protocol key table, enabling integration with third‑party control systems and detailed troubleshooting steps for programming errors.
| IR protocol | Philips RC6 Mode 6A |
|---|---|
| Operating range | up to 30 feet |
| Programmable source buttons | 4 Escient devices + 4 other devices |
| Number of R‑source buttons | 4 (R1‑R4) |
Select Setup from the main menu, then choose External Control → IR Remote Control, highlight the desired source button, press the new button on the remote, and confirm with OK.
Press and hold the “Code Set” button until the LED flashes twice, enter “987”, then enter the factory reset code (e.g., 0082 for R1). The LED will flash twice to confirm.
Locate the 4‑digit device code in Appendix A, press the source button to be programmed, hold “Code Set” until the LED flashes, then enter the code. The LED will flash twice if accepted.
The Macro key lets you enter a sequence of two or more IR commands, enabling functions that cannot be accessed with a single command.
