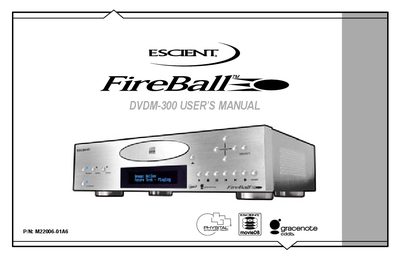

This manual introduces the features and usage methods of the Escient FireBall DVDM-300 product
This manual provides a complete overview of the Escient FireBall DVDM-300 media management system, covering front‑panel controls, remote functions, and connections for external CD/DVD changers. It also details how to browse and manage movie and music libraries, record CDs, and customize screen‑saver and user‑interface settings.
The guide includes instructions for network configuration, software updates, and troubleshooting, as well as safety warnings, warranty information, and full technical specifications for video, audio and physical dimensions.
| Video Standard | NTSC |
|---|---|
| Video SNR | 50 dB |
| Video Crosstalk | 50 dB |
| Video Input Impedance | 75 Ω |
| Video Output Impedance | 750 Ω |
| Audio Frequency Response | 2 – 20 kHz, +1 dB |
| Audio Dynamic Range | > 96 dB FS |
| Audio Channel Separation | > 95 dB |
| Audio Full‑Scale Line Output | > 2 Vrms, 50 kΩ |
| S/PDIF Output Level | 0.4 Vpp‑0.6 Vpp |
| Power Requirements | AC 90‑132 V, 50‑60 Hz |
| Power Consumption | < 60 W |
| Width | ~ 17 3/8 in |
| Height (with feet) | ~ 4 5/8 in |
| Depth (installed) | ~ 14 3/8 in |
It requires AC 90‑132 V at 50‑60 Hz and consumes less than 60 watts.
Use the "Updating the Software" section in the manual to download and install updates via the web interface.
The device outputs NTSC video with 10‑bit DACs.
