The 3802 series of microprocessors is an 8-bit microprocessor based on the 740 family core technology.
The 3802 Group is an 8‑bit CMOS microcomputer based on the 740 family core, designed for control systems that need analog signal processing, serial I/O, A‑D and D‑A converters. It offers configurable memory sizes, multiple I/O ports, timers, and interrupt sources.

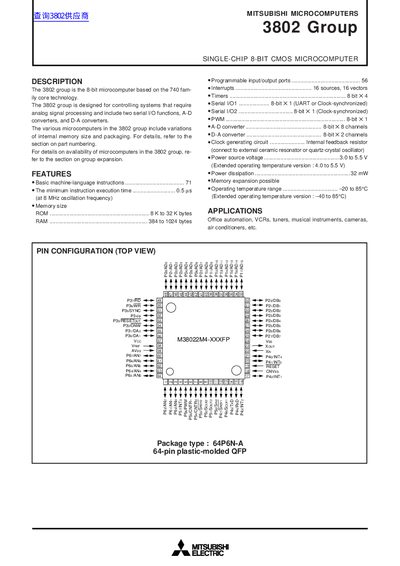

The document details pin configurations, electrical characteristics, package types, and expansion options such as mask ROM, OTP and EPROM versions. It also lists part numbering conventions and provides a revision history.
| Operating temperature range | -40 °C to 85 °C |
|---|---|
| Package type | 64P6N-A (also 64P4B, 64P4B‑E, 64D0) |
| Timers | 4 × 8‑bit timers |
| Interrupt sources | 16 sources, 16 vectors |
| Serial interface | UART 8‑bit ×1 (or clock‑synchronized) |
| A‑D converter | 8‑bit ×1 |
| D‑A converter | 8‑bit ×2 channels |
It provides 16 interrupt sources with 16 corresponding vectors.
The 3802 is offered in 64‑pin packages such as 64P4B, 64P6N‑A, 64P4B‑E, and 64D0.
