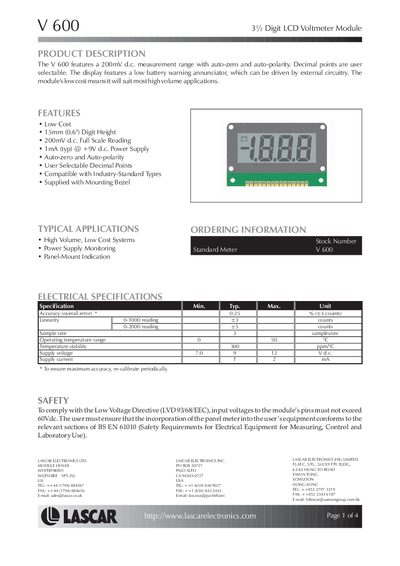

The V 600 is a low cost, 200mV d.c. full scale reading LCD voltmeter module with auto-zero and auto-polarity. Decimal points are user selectable and compatible with industry-standard types. The module is supplied with a mounting bezel and is suitable for high volume, low cost systems, power supply monitoring and panel indication applications.
The V 600 is a 3% digit LCD voltmeter module designed for high‑volume, low‑cost applications such as power‑supply monitoring and panel‑mount indication. It offers a 200 mV d.c. full‑scale reading, auto‑zero, auto‑polarity, selectable decimal points, and a low‑battery warning that can be driven externally.
Technical data include a typical power consumption of 1 mA at +9 V, accuracy of 0.25 % (+3 counts), a supply voltage range of 7‑12 V, and operation from 0 °C to 50 °C. The module dimensions, pin configuration, and scaling options are provided for easy integration into equipment, and safety compliance follows the Low Voltage Directive (LVD 93/68/EEC) and BS EN 61010.
| Full Scale Reading | 200 mV d.c. |
|---|---|
| Power Supply Current | 1 mA (typ) @ +9 V d.c. |
| Accuracy (overall error) | 0.25 % (+3 counts) |
| Supply Voltage | 7.0 – 12 V |
| Sample Rate | 3 samples/sec |
| Operating Temperature Range | 0 – 50 °C |
| Temperature Stability | 300 ppm/°C |
| Digit Height | 15 mm (0.6") |
| Panel Thickness | 1.0 – 3.0 mm |
The V 600 provides a 200 mV d.c. full‑scale reading.
It typically draws 1 mA from a +9 V d.c. supply.
High‑volume low‑cost systems, power‑supply monitoring, and panel‑mount indication.
