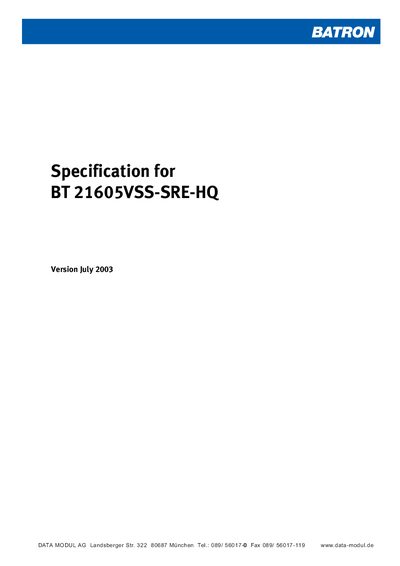

This is a specification for VL-FS-BTHQ 21605VSS-01 LCD module, introducing the module's specifications, features and parameters.
The BT 21605VSS-SRE-HQ is a 16‑character (5 × 8 dots) × 2‑line STN positive yellow reflective LCD module. It uses a SAMSUNG KS0070BP-00CC LCD controller or equivalent and offers a 6 o’clock viewing angle.
Key specifications include outline dimensions of 84 mm × 44 mm × 10 mm, an effective viewing area of 61 mm × 15.8 mm, and electrical limits such as a logic supply range of –0.3 V to +7.0 V. The module operates from 0 °C to +50 °C and meets IEC vibration and shock standards.
| Effective viewing area | 61.0 mm × 15.8 mm |
|---|---|
| Character size | 2.95 mm × 5.55 mm (5 × 8 dots) |
| Dot size | 0.578 mm × 0.681 mm |
| Logic supply voltage (VDD‑VSS) | -0.3 V to +7.0 V |
| LCD drive supply voltage (VDD‑VO) | -0.3 V to +15.0 V |
| Input voltage (Vin) | -0.3 V to VDD+0.3 V |
| Operating temperature range | 0 °C to +50 °C |
| Display format | 16 characters × 2 lines |
| LCD controller | SAMSUNG KS0070BP-00CC |
The logic supply voltage (VDD‑VSS) may range from –0.3 V to +7.0 V.
It supports 16 characters per line and 2 lines.
The module uses a SAMSUNG KS0070BP-00CC LCD controller or equivalent.
