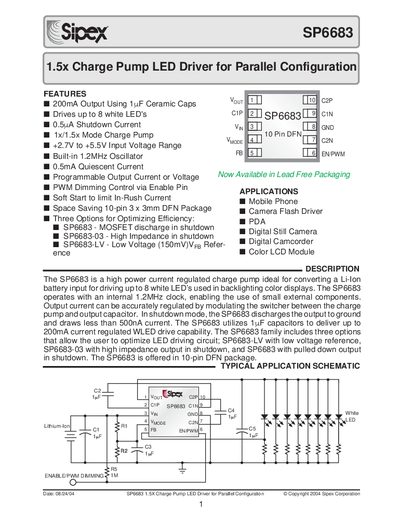

The SP6683 is a high power current regulated charge pump ideal for converting a Li-Ion battery input for driving up to 8 white LED’s used in backlighting color displays. The SP6683 operates with an internal 1.2MHz clock, enabling the use of small external components. Output current can be accurately regulated by modulating the switcher between the charge pump and output capacitor. In shutdown mode, the SP6683 discharges the output to ground and draws less than 500nA current. The SP6683 utilizes 1µF capacitors to deliver up to 200mA current regulated WLED drive capability. The SP6683 family includes three options that allow the user to optimize LED driving circuit; SP6683-LV with low voltage reference, SP6683-03 with high impedance output in shutdown, and SP6683 with pulled down output in shutdown. The SP6683 is offered in 10-pin DFN package.
The SP6683 is a high‑power, current‑regulated charge‑pump LED driver designed to convert a Li‑ion battery voltage to drive up to eight white LEDs for back‑lighting in mobile devices. It operates from 2.7 V to 5.5 V, includes an internal 1.2 MHz oscillator, PWM dimming via the EN/PWM pin, and a shutdown mode that draws less than 500 nA.
The document contains absolute maximum ratings, electrical characteristics, pin‑out diagrams, typical application schematics, performance curves, and ordering information for the SP6683 family (standard, SP6683‑03, SP6683‑LV). It also gives guidance on resistor and capacitor selection, brightness matching, and efficiency optimization.
| Input Voltage Range | 2.7 V – 5.5 V |
|---|---|
| Quiescent Current | Typical 3 mA |
| Shutdown Current | ≤ 0.5 µA |
| Maximum Load Current | 200 mA |
| Oscillator Frequency | 1.2 MHz (typical) |
The device operates from 2.7 V up to 5.5 V.
It can drive up to eight white LEDs in parallel.
PWM dimming is achieved by applying a PWM signal to the EN/PWM pin.
