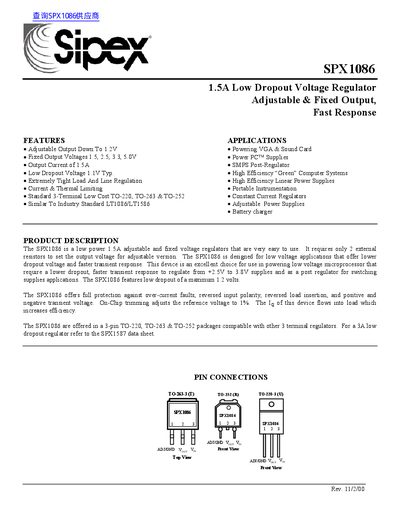

SPX1086 is a 1.5A low dropout adjustable and fixed output, fast response voltage regulator.
The SPX1086 is a 1.5 A low‑dropout voltage regulator offered in adjustable and fixed output versions. It is designed for low‑voltage applications, providing fast transient response, tight load and line regulation, and built‑in protection against over‑current, reversed polarity, and transient voltages. The device is supplied in 3‑lead TO‑220, TO‑263, and TO‑252 packages.
The datasheet lists absolute maximum ratings, electrical characteristics such as dropout voltage (max 1.2 V), line regulation (0.2 %), load regulation (0.3 %), and operating temperature ranges (‑45 °C to +125 °C). Ordering information and typical application circuits are also included.
| Maximum Output Current | 1.5 A |
|---|
The SPX1086 can deliver up to 1.5 A of output current.
It includes protection against over‑current faults, reversed input polarity, reversed load insertion, and positive and negative transient voltage.
