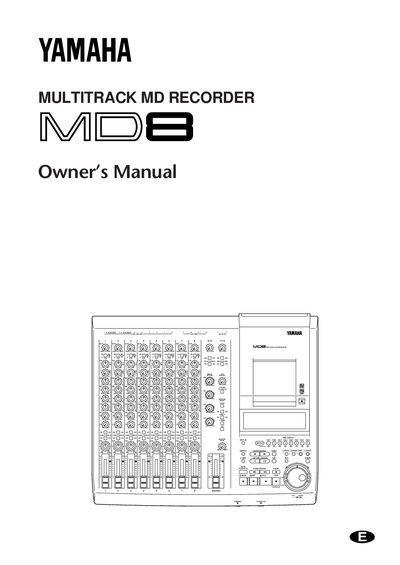

This manual introduces the features and usage of E MULTITRACK MD RECORDER
This manual explains how to install and safely operate the Yamaha MD8 multitrack MiniDisc recorder. It includes important safety warnings, power‑cord wiring instructions, ventilation requirements, and guidance on avoiding electrical‑shock and fire hazards.
The guide covers recording and playback functions, multitrack mixing, overdubbing, ping‑pong recording, and MIDI synchronization. It also provides a quick‑start system, detailed descriptions of the front and rear panels, and a troubleshooting section for common problems.
| Laser diode material | GaAlAs |
|---|---|
| Laser wavelength | 780‑790 nm |
| Laser emission duration | Continuous |
| Laser output power | Less than 44.6 mW |
| Operating temperature range | 5 °C to 35 °C (41 °F to 95 °F) |
Connect the supplied AC power cord, wiring the blue (neutral) wire to the terminal marked N or black, and the brown (live) wire to the terminal marked L or red. Do not connect either wire to the earth terminal.
