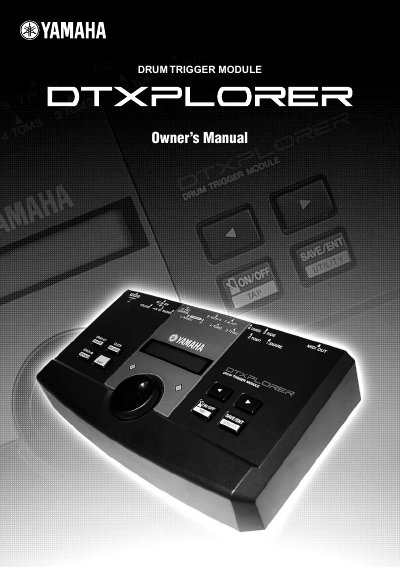

This is the owner's manual for a drum trigger module. It introduces the features and usage of the product.
This manual covers safety warnings, power‑supply requirements, and proper handling of the DTXPLORER drum trigger module. It explains how to connect trigger pads, use the built‑in metronome, tap‑tempo, and song playback functions, and how to create and store custom drum kits.
Additional sections describe the MIDI and auxiliary connections, detailed specifications, troubleshooting tips, and service information. The document also includes a list of preset drum kits, songs, and voice data, as well as guidelines for battery replacement and disposal.
| Polyphony | 32 voices |
|---|---|
| Bit depth | 16‑bit AWM2 (PCM) |
| Number of drum voices | 192 |
| Trigger input jacks | 9 |
| Hi‑hat controller jack | 1 |
| Power adaptor requirement | Yamaha PA‑3C AC Power Adaptor |
| Backup battery | Built‑in lithium backup battery |
| Power input voltage | 12 V DC |
| Preset drum kits | 32 |
| User memory kits | 10 |
| Preset songs | 22 |
Only a Yamaha PA‑3C AC Power Adaptor (or another adaptor specifically recommended by Yamaha) may be used.
The unit provides nine trigger input jacks for connecting drum pads.
The tone generator supports 32‑voice polyphony.
The sequencer contains 22 preset songs.
