This is a remote controlled motorized wall mount that is suitable for 26-50 inch LCD TVs and plasma TVs. The wall mount can be installed on the left or right side and can tilt the TV up to 90 degrees. You can also install the TV on the ceiling. The wall mount features unique two-way pitch adjustments that allow you to adjust the TV to perfect horizontal and vertical alignment on the wall.

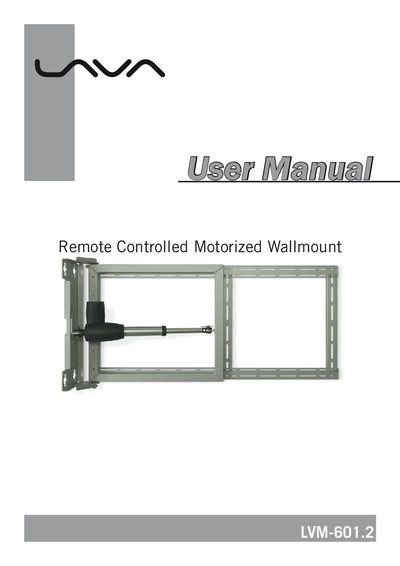

The LVM-601.2 is a remote‑controlled, motorized wall mount designed for LCD and Plasma TVs ranging from 26‑50 inches. It can tilt the TV up to 90° left or right, and can also be installed in the ceiling. The mount supports TVs up to 50 kg when wall‑mounted and up to 13 kg when ceiling‑mounted, with adjustable VESA‑style brackets and two‑way pitch adjustments for precise alignment.
The manual covers safety precautions, required tools, step‑by‑step installation (wall and ceiling), wiring, remote‑learning procedures, operation instructions, and technical specifications. It also explains the lock function, friction brake adjustment, and troubleshooting tips for remote compatibility.
| Operation Voltage | 100‑240VAC, Secondary 12VDC 2A |
|---|---|
| Maximum TV weight (wall installation) | 50 kg |
| Maximum TV weight (ceiling installation) | 13 kg |
| Wall installation dimensions (width) | 700‑1300 mm |
| Supported TV size range | 26‑50 inches |
| Mounting screw location range (width) | 50‑668 mm |
You need a drilling machine, drills, Phillips and Pozidrive screwdrivers, a water level, and a wrench (8 mm or 10 mm).
