AD713 is a high precision, high speed, BiFET quad op amp from Analog Devices. It can be used in active filters, quad output buffers, 12- and 14-bit DAC input buffers and photo diode preamplifier applications.
The AD713 is a quad operational amplifier composed of four AD711 BiFET op‑amps, offering high speed, low distortion, and excellent DC precision. It is suited for active filters, DAC output buffers, ADC input buffers, and photodiode pre‑amplifier applications.

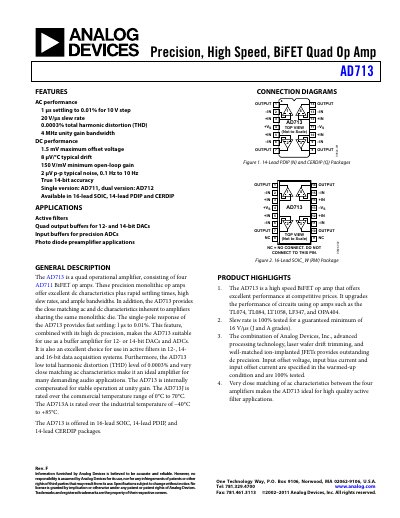

The device is available in 16‑lead SOIC, 14‑lead PDIP, and 14‑lead CERDIP packages, with operating temperature ranges of 0 °C to 70 °C (AD713J) or –40 °C to +85 °C (AD713A). The handbook includes detailed specifications, absolute maximum ratings, typical performance curves, test circuits, and ordering information.
| Total harmonic distortion (typical) | 0.0003 % |
|---|---|
| Supply voltage range | ±15 V |
The AD713 is offered in 16‑lead SOIC, 14‑lead PDIP, and 14‑lead CERDIP packages.
