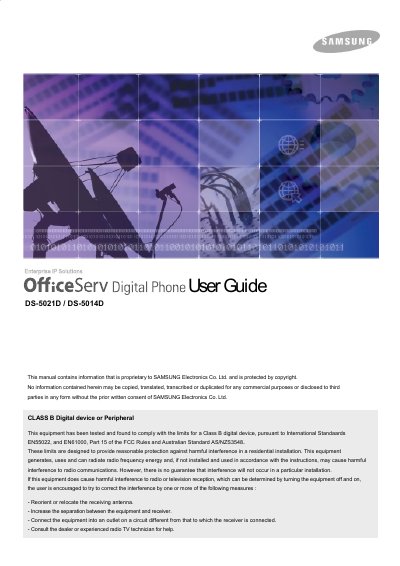

This manual contains information that is proprietary to SAMSUNG Electronics Co. Ltd. and is protected by copyright. No information contained herein may be copied, translated, transcribed or duplicated for any commercial purposes or disclosed to third parties in any form without the prior written consent of SAMSUNG Electronics Co. Ltd.
This guide covers safety concerns, unpacking, and assembly of the DS-5021D/DS-5014D digital phones, including proper installation, handling of the handset, and environmental precautions. It also describes the main features, front and bottom panel layouts, and optional modules such as KDB and AOM.
The manual details everyday operation, configuration of system functions, volume adjustment, call handling, and troubleshooting steps for common issues like missing dial tone, no display, or low volume. Product specifications for both models are listed in the annex.
| Weight | 1.1 kg |
|---|---|
| Size | 266 mm × 206 mm × 119 mm |
| Operating Temperature | 0 °C to 45 °C |
| Operating Humidity | 10 % to 90 % non‑condensing |
| Programmable Buttons | 21 (DS-5021D), 14 (DS-5014D) |
| Navigation Button | Yes |
| Speakerphone | Yes |
| LCD Display | 2‑line, 24 characters (English) |
Press the volume up/down button to increase the volume.
Check that the handset and phone line are properly connected to their respective ports.
No, the phone must not be installed near heaters or naked flames to avoid fire or electric shock.
