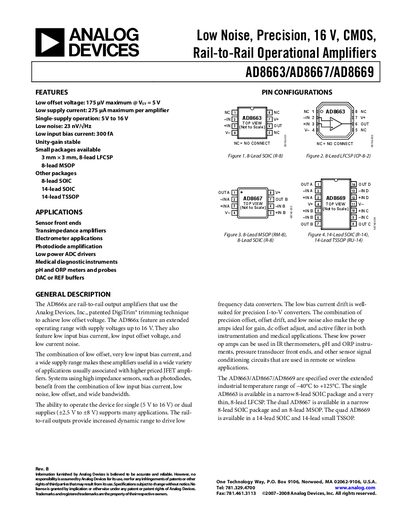

Analog Devices AD8663/AD8667/AD8669 Datasheet

This document is the AD8663/AD8667/AD8669 datasheet. AD8663/AD8667/AD8669 is a low noise, precision, 16 V, CMOS, Rail-to-Rail operational amplifier.

Brand: Analog Devices
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 16
File format: PDF
File size: 1.2 MB
Published: 02 May, 2012
Updated: 01 October, 2023
Model: AD8669
MD5 checksum: A6AE9B48A7EBF0092E86B102404165DC
PDF: Analog Devices AD8663/AD8667/AD8669 Datasheet PDF

About this manual

The AD866x family provides precision, low‑noise op‑amps with rail‑to‑rail output, low offset voltage, and ultra‑low input bias current. They operate from a single supply of 5 V to 16 V and are suitable for sensor front ends, photodiode amplification, medical diagnostics, and pH/ORP meters.

Multiple package options are offered, including 8‑lead SOIC, LFCSP, MSOP, and 14‑lead SOIC/TSSOP for the quad‑version AD8669. The devices are rated for an industrial temperature range of –40 °C to +125 °C and include ESD protection.

What's inside

Features
Applications
Pin Configurations
General Description
Revision History
Specifications
Electrical Characteristics
Absolute Maximum Ratings
Thermal Resistance
Ordering Guide

Specifications

Offset Voltage (Vos) typical	175 µV
Input Bias Current typical	300 fA
Operating Temperature Range	-40 °C to +125 °C

Frequently asked questions

What is the operating temperature range of the AD8663/AD8667/AD8669?

The devices are rated for –40 °C to +125 °C.

What is the typical offset voltage for the AD8663?

Typical offset voltage is 175 µV.
