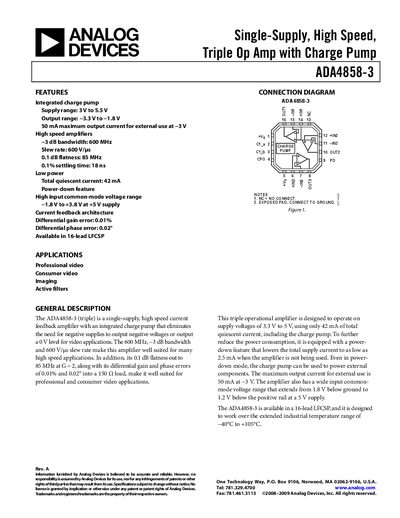

This document describes ADA4858-3, a single-supply, high-speed, triple op amp with a charge pump. It features an integrated charge pump, a supply range of 3V to 5.5V, an output range of -3.3V to -1.8V, and a maximum external output current of 50mA at -3V, etc.
The ADA4858-3 is a single‑supply, high‑speed current‑feedback amplifier featuring an integrated charge pump, eliminating the need for negative supplies. It operates from 3 V to 5.5 V and delivers up to 600 MHz bandwidth and 600 V/µs slew rate, making it suitable for professional and consumer video applications.
The device is offered in a 16‑lead LFCSP package, supports a wide input common‑mode range, and includes a power‑down pin that reduces quiescent current to as low as 2.5 mA. Detailed specifications, pin functions, and typical performance graphs are provided in the document.
| -3 dB Bandwidth | 600 MHz |
|---|---|
| Slew Rate | 600 V/µs |
| Settling Time to 0.1% | 18 ns |
| Total Quiescent Current | 42 mA |
| Operating Supply Range | 3 V to 5.5 V |
| Maximum Output Current (external) | 50 mA at –3 V |
| Charge Pump Output Voltage | –3.3 V to 3 V |
It operates from 3 V up to 5.5 V.
The device can source up to 50 mA at –3 V for external use.
The amplifier draws about 42 mA of total quiescent current.
It has a –3 dB bandwidth of 600 MHz.
