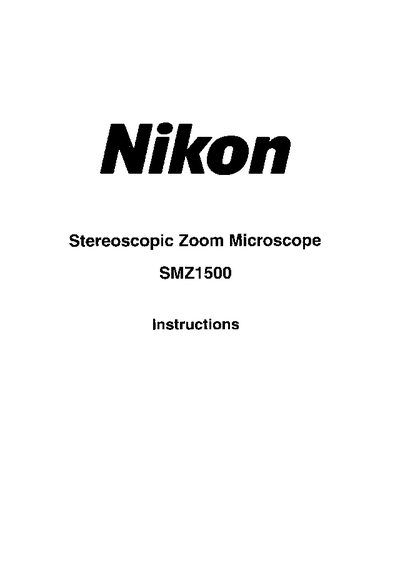

This manual explains the intended use of the Nikon SMZ1500 stereoscopic zoom microscope and outlines safety precautions, including warnings about electric shock, fire hazards, and proper handling of the illuminator lamp. It also describes the symbols used throughout the document and stresses the importance of reading the manual before operating the instrument.
Key sections cover installation location requirements, lens cleaning procedures, storage recommendations, regular inspections, and detailed operating steps such as adjusting focus, changing zoom magnification, and using accessories like eyepiece tubes, stages, and illuminators. Technical tables provide magnification ranges, field numbers, and reticle dimensions for various objectives.
| Field Number | 22 (10X), 16 (15X), 12.5 (20X), 7 (30X) |
|---|---|
| Reticle Diameter | 0.25 mm (10X), 0.19 mm (15X/20X), 0.912 mm (30X) |
| Magnification Range | 0.5× – 30× |
Install the microscope in a location with a temperature between 0 °C and 40 °C, humidity below 80 %, no direct sunlight, no vibration, and free from dust and dirt.
Turn off the power switch, unplug the power cord, wait for the lamp and surrounding area to cool before handling, and avoid touching hot components.
