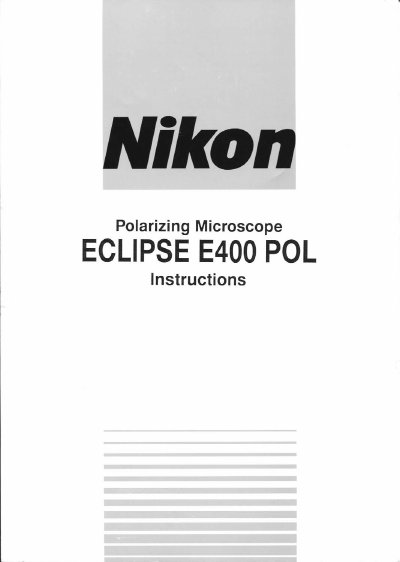

This manual explains the correct and safe use of the Nikon ECLIPSE E400 POL polarizing microscope. It includes safety symbols, warnings, and cautions that must be followed to avoid injury or damage.
The document covers power requirements, lamp specifications, replacement procedures, handling, moving, and cleaning of the microscope, as well as detailed descriptions of component parts, operation of focus knobs, polarizing plates, and troubleshooting tips.
| Input voltage (100‑120 V area) | 100‑120 V |
|---|---|
| Input voltage (220‑240 V area) | 220‑240 V |
| Power cord rating | 125 V, 7 A minimum, 18 AWG |
| Lamp type | 6 V‑30 W halogen lamp (PHILIPS 5761) |
| Maximum lamp power | 6 V‑30 W |
Use a 6 V‑30 W halogen lamp, specifically the PHILIPS 5761 model.
Turn off the power switch, unplug the power cord, wait at least 30 minutes for the lamp to cool, then replace it and re‑attach the lamp cover.
