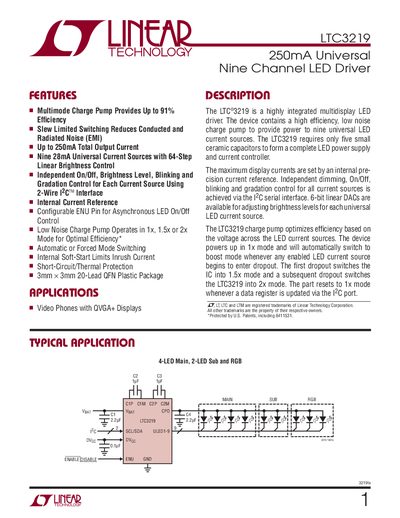

The LTC3219 is a highly integrated multidisplay LED driver. The device contains a high efficiency, low noise charge pump to provide power to nine universal LED current sources. The LTC3219 requires only five small ceramic capacitors to form a complete LED power supply and current controller. The maximum display currents are set by an internal precision current reference. Independent dimming, On/Off, blinking and gradation control for all current sources is achieved via the I2C serial interface. 6-bit linear DACs are available for adjusting brightness levels for each universal LED current source. The LTC3219 charge pump optimizes efficiency based on the voltage across the LED current sources. The device powers up in 1x mode and will automatically switch to boost mode whenever any enabled LED current source begins to enter dropout. The first dropout switches the IC into 1.5x mode and a subsequent dropout switches the LTC3219 into 2x mode. The part resets to 1x mode whenever a data register is updated via the I2C port.
The LTC3219 LED driver provides nine universal 28 mA current sources with 64‑step linear brightness control, all configurable via a 2‑wire I²C interface. It features a multimode charge pump that delivers up to 91 % efficiency and includes soft‑start, over‑temperature, short‑circuit and thermal protection.
Typical applications include video phones, multi‑display devices, and camera illumination. The device operates from 2.9 V to 5.5 V, supports a temperature range of –40 °C to 85 °C, and is supplied in a 20‑lead 3 mm × 3 mm plastic QFN package.
| Total LED Output Current | Up to 250 mA |
|---|---|
| Number of LED Current Sources | 9 |
| Package | 20‑Lead (3 mm × 3 mm) Plastic QFN |
| Operating Voltage Range | 2.9 V to 5.5 V |
| Maximum Efficiency | Up to 91 % |
| Interface | 2‑Wire I²C™ |
| Clock Frequency | 0.65 – 1.05 MHz |
| Shutdown Current | 3.2 pA |
The device can drive up to 250 mA total LED output current.
It provides nine universal LED current sources, each controllable via I²C.
The LTC3219 is supplied in a 20‑lead 3 mm × 3 mm plastic QFN package.
The device operates from 2.9 V to 5.5 V.
