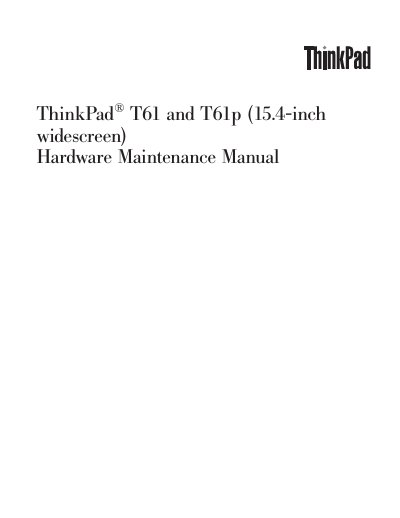

This document contains the hardware maintenance manual for the ThinkPad T61 and T61p, which introduces the product's safety information, important service information and maintenance strategy.
This Service Manual provides detailed safety procedures, diagnostic steps, and part‑replacement instructions for the ThinkPad T61 and T61p 15.4‑inch widescreen laptops. It covers general and electrical safety, handling of electrostatic‑sensitive devices, and specific service information such as FRU identification and replacement strategies.
The document also includes a complete parts list, specifications, and tools required for maintenance, along with step‑by‑step guides for checking the AC adapter, battery, and other components. It is intended for trained service technicians familiar with ThinkPad products.
| Processor | Intel Core 2 Duo T7100 (1.8 GHz) |
|---|---|
| Display | 15.4‑inch WXGA (1280 × 800) TFT LCD |
| Memory | 512 MB DDR2‑667 SDRAM SO‑DIMM |
| Hard disk | 60 GB 5400 rpm SATA |
| Battery | Li‑ion 6‑cell 5.2 Ah |
Technicians should wear safety glasses, avoid loose clothing, remove jewelry, and follow grounding and electrostatic‑discharge guidelines.
The manual includes a step‑by‑step procedure titled “Checking the AC adapter” to verify proper operation.
