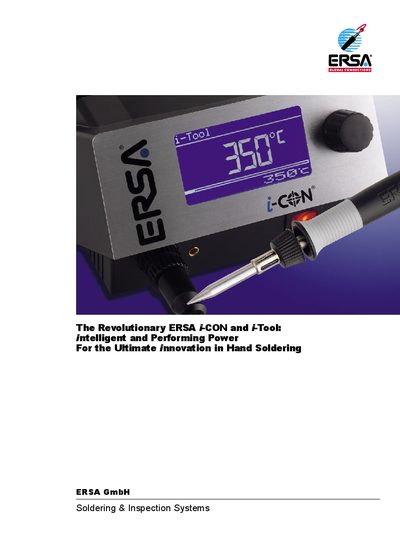

ERSA i-Tool / i-CON is the revolutionary intelligent soldering iron from ERSA, with outstanding performance and ergonomic design.
ERSA GmbH offers a range of intelligent hand‑soldering solutions for lead‑free production. The i‑Tool and i‑CON stations combine a 150 W micro‑heating element with ultra‑fast heat‑up (30 °C → 350 °C in ~9 s) and rapid heat‑recovery, while the Process Window Alarm warns operators when tip temperature leaves the preset range.
The systems feature ergonomic designs such as a 45 mm tip‑to‑grip distance, a lightweight 30 g iron, and a short, low‑capacitance cable. Low‑cost, long‑life replaceable tips (ERSADUR‑LF) reduce running costs, and automatic tool detection supports multiple soldering and desoldering accessories including Chip Tool and X‑Tool.
| Supply voltage | 220‑240 VAC/50 Hz; 110‑120 VAC/60 Hz |
|---|---|
| Power rating | 150 W ±10 % |
| Heating time to 350 °C | ≈ 9 seconds |
| Temperature range | continuous 150 °C – 450 °C |
| Cable length | 1.5 m (5 ft) |
It reaches 350 °C in about 9 seconds.
The i‑Tool provides three power level settings.
