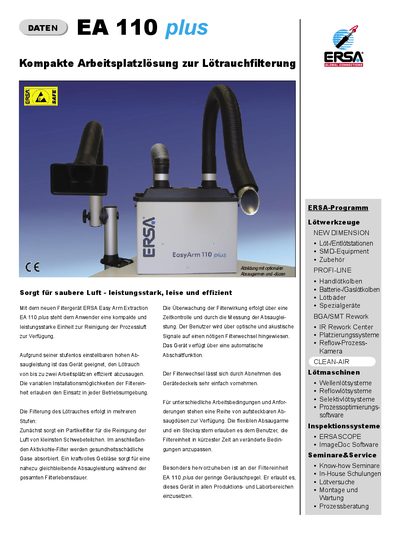

The ERSA EA 110 plus is a compact, powerful desktop fume extraction device that effectively filters out particles and harmful gases from solder smoke to ensure a clean work environment.
The ERSA Easy Arm Extraction EA 110 provides a compact, powerful solution for cleaning process air at soldering workstations. It combines a particle filter, an activated‑carbon gas filter and a powerful fan to maintain stable suction throughout the filter life.
The unit features adjustable suction, automatic shutdown, optical and acoustic signals for filter‑change warnings, and a range of interchangeable suction nozzles and flexible arms for versatile installation in any production or laboratory environment. This manual is written in German.
| Dimensions (B×T×H) | 460 × 210 × 470 mm |
|---|---|
| Weight | 10 kg |
| Noise level | 51 dB(A) at 1 m |
| Air flow | 140 m³/h |
| Maximum vacuum | 2200 Pa (0.22 bar) |
| Particle filtration efficiency | >99.97 % (DOP/HEPA) |
| Gas filter | Activated carbon |
| Supply voltage | 100‑250 V, 50/60 Hz |
| Power consumption | 100 W |
| Protection | 2 × 6.3 A fuse |
| Suction control | Continuously adjustable |
The unit operates at a noise level of 51 dB(A) measured at a distance of 1 m.
