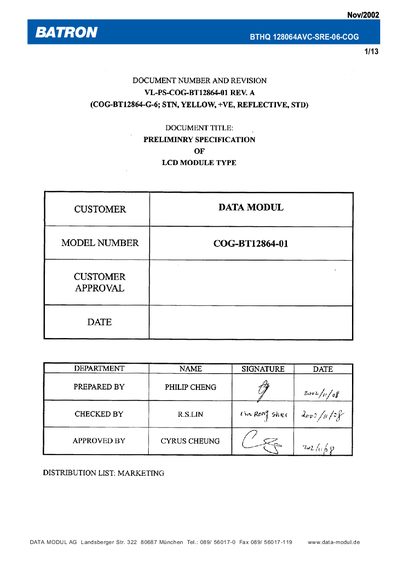

This document is the technical specification of BATRON BTHQ 128064AVC-SRE-06-COG, which details the features of the product.
The BTHQ 128064AVC-SRE-06-COG is a 128 × 64 dot STN yellow positive‑reflective LCD module. It uses a ULTRA CHIP UC1606 (COG) controller‑driver and operates from a +3 V logic supply. The module is supplied as a flexible printed circuit (FPC) assembly.
The document provides mechanical dimensions, electrical maximum ratings, environmental limits, and detailed timing specifications for both parallel and serial interfaces. It also lists the pin functions and recommended power supply connections for reliable operation.
| Display format | 128 x 64 dots |
|---|---|
| Outline dimensions | 67.5 mm × 82.5 mm × 1.98 mm |
| Dot size | 0.43 mm × 0.57 mm |
| Logic power supply | +3 V |
| Logic supply voltage (VDD1‑VSS) | -0.3 V to +5.5 V |
| LCD generated voltage (VLCD) | -0.3 V to +15.5 V |
| Ambient temperature range | 0 °C to +50 °C |
| Maximum humidity | 95 % RH (Ta < 40 °C) |
The module has a 128 × 64 dot display format.
The outline dimensions are 67.5 mm × 82.5 mm × 1.98 mm.
The logic supply voltage is +3 V.
It operates from 0 °C to +50 °C ambient temperature.
