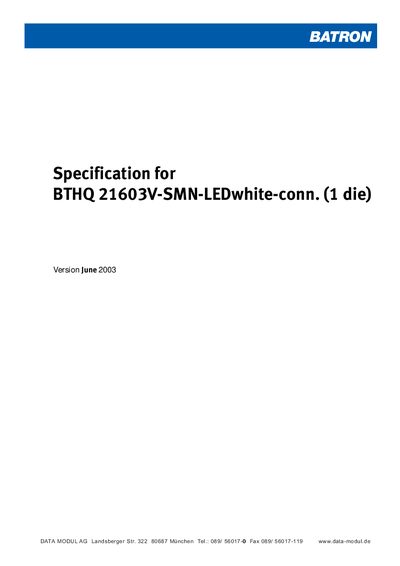

This document describes the specifications and characteristics of the BTHQ 21603V-SMN-LEDwhite-conn. (1 die) VL-FS-BTHQ 21603VSS-05 REV. B display module produced by DATA MODUL AG.
The BTHQ 21603VSS-05 is a 16‑character (5×8 dots) × 2‑line STN negative blue transmissive dot‑matrix LCD module with a white LED backlight. It features a 16‑pin CON‑16X1‑35 connector (1.00 mm pitch) and is driven by a NOVATEK NT3881DH‑01/AI LCD controller or equivalent.
The document provides mechanical dimensions, electrical ratings, interface pin definitions, environmental limits, and LED backlight characteristics, along with typical electrical characteristics and timing diagrams for designers and integrators.
| Outline dimensions | 53.0 mm (W) × 20.0 mm (H) × 8.5 mm (D) |
|---|---|
| Viewing area | 36.0 mm (W) × 10.0 mm (H) |
| Active area | 34.10 mm (W) × 7.40 mm (H) |
| Display format | 16 characters × 2 lines |
| Character size | 1.85 mm (W) × 3.15 mm (H) (5 × 8 dots) |
| Connector type | CON‑16X1‑35, 16 pins, 1.00 mm pitch |
| Supply voltage (Logic) – typical | 5.0 V |
| Supply voltage (LCD) – typical | 4.2 V (at 25 °C) |
| Logic voltage range (absolute max) | -0.3 V to +7.0 V |
It uses a 16‑pin CON‑16X1‑35 connector with a 1.00 mm pitch.
The module operates from 0 °C to +50 °C; storage temperature is –10 °C to +60 °C.
The LCD displays 16 characters per line on 2 lines.
