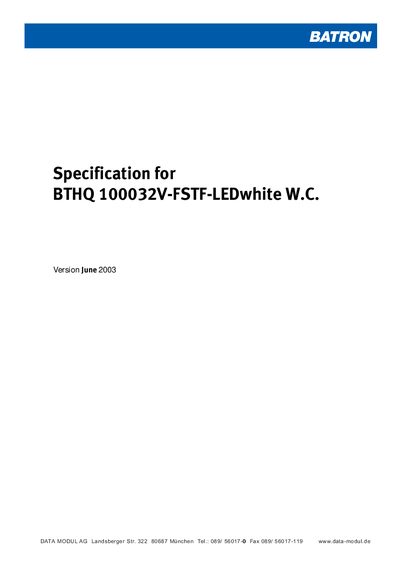

This is a data module specification for BTHQ 100032V-FSTF-LEDwhite W.C.
The BATRON BTHQ 100032V-FSTF-LEDwhite W.C. is a 100 × 32‑dot FSTN positive black‑and‑white transreflective LCD module with a white LED backlight. It includes mechanical dimensions, viewing area, dot size and pitch, and weight details.
Electrical data cover the logic and LCD supply voltages, current consumption, absolute maximum ratings, and LED forward voltage. Interface pin assignments and timing specifications are also provided for integration with 68‑family microprocessors.
| Outline dimensions | 65.0 mm × 28.4 mm × 8.5 mm |
|---|---|
| Effective viewing area | 46.0 mm × 18.4 mm |
| Active area | 42.99 mm × 15.31 mm |
| Display format | 100 × 32 dots |
| Dot size | 0.415 mm × 0.464 mm |
| Dot pitch | 0.430 mm × 0.479 mm |
| Weight | Approx. 18.0 g |
| Logic supply voltage (VDD) typical | 5.0 V |
| Forward voltage of white LED | 3.4 V |
The logic supply voltage (VDD) may range from 4.75 V to 5.25 V, with a typical value of 5.0 V.
VDD must stay between –0.3 V and +8.0 V; exceeding these limits can destroy the module.
The module weighs approximately 18 grams.
The forward voltage of the white LED backlight is specified as 3.4 V.
