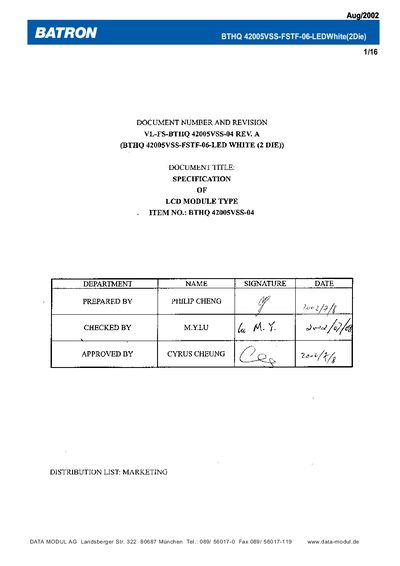

This document is about the specification of BTHQ 42005VSS-FSTF-06-LEDWhite(2Die), which includes the general description, mechanical specifications, interface signals, absolute maximum ratings, electrical specifications, character generator ROM(KS0066U-10B) and more.
The BTHQ 42005VSS-FSTF-06-LEDWhite(2Die) is a 20‑character by 4‑line FSTN positive black‑and‑white transfl ective LCD module with a white LED backlight. It uses a Samsung KS0066U‑10B controller and operates with a 1/16 duty, 1/5 bias.
Key specifications include a 98 mm × 60 mm × 14 mm outline, 76 mm × 25.2 mm viewing area, supply voltages of 5 V ± 5 % for logic and 4.2‑5.0 V for the LCD, and an operating temperature range of –5 °C to +50 °C. The module provides a 16‑pin interface for power, data, control and LED backlight connections.
