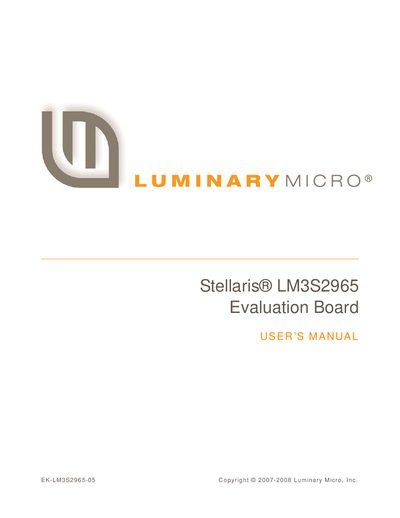

Luminary Micro LM3S2965 Evaluation Board User Manual
The Luminary Micro LM3S2965 Evaluation Board is a compact evaluation platform for the Stellaris LM3S2965 ARM Cortex‑M3 microcontroller, featuring a CAN host and a companion CAN device board. The kit can also be used as a low‑cost in‑circuit debug interface.
The manual covers board layout, connector details, power supplies, USB and JTAG/SWD debugging interfaces, an OLED graphics display, user LEDs and switches, and includes schematics, connection details, and contact information for support.
Luminary LM3S2965 specifications
| Microcontroller | Stellaris LM3S2965 with integrated CAN |
|---|---|
| CAN device board MCU | Stellaris LM3S2110 |
| Debug connector | Standard ARM 20‑pin JTAG |
| USB interface | Debugging and power supply |
| Display | OLED graphics |
| User controls | LED, navigation switches, push‑buttons |
| Speaker | Magnetic |
| I/O breakout | Available on labeled pads |
Source: Luminary Micro Stellaris LM3S2965 CAN Evaluation Kit User Manual
All Luminary LM3S2965 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which microcontroller is used as the CAN host on the evaluation board?
The main evaluation board configures a Stellaris LM3S2965 microcontroller as a CAN host.
From: Luminary Micro Stellaris LM3S2965 CAN Evaluation Kit User Manual
What software resources are included with the evaluation kit?
A CD supplies complete documentation, source‑code examples, and evaluation versions of Keil MDK‑ARM, IAR Workbench, and CodeSourcery GCC development tools.
From: Luminary Micro Stellaris LM3S2965 CAN Evaluation Kit User Manual
What microcontroller does the LM3S2965 Evaluation Board use?
It uses the Stellaris LM3S2965 microcontroller, which includes a fully‑integrated CAN module.
Does the board include a CAN module?
Yes, the LM3S2965 microcontroller on the board has a fully‑integrated CAN module.
