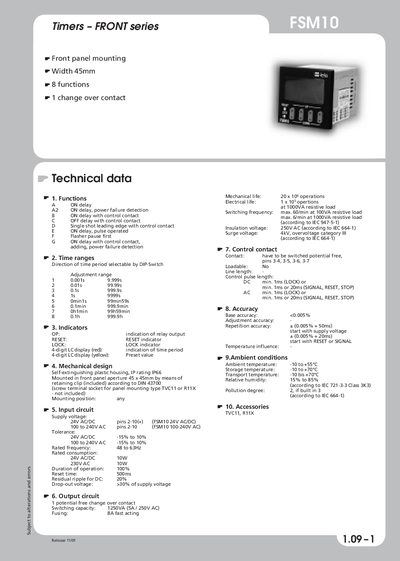

The FSM10 series are 45 mm wide DIN 43700 front panel mounted timers with 8 functions and 1 changeover contact.
The FSM10 is a front‑panel mounting timer with a 45 mm × 45 mm aperture. It offers eight selectable functions, including on‑delay, off‑delay, single‑shot, flasher and power‑failure detection, each with an optional control contact. The device is housed in a self‑extinguishing plastic case with IP66 protection and is mounted by a retaining clip according to DIN 43700.
Technical data include a mechanical life of 20 × 10⁶ operations, electrical life of 1 × 10⁶ operations, supply voltage 24 V AC/DC or 100‑240 V AC, switching capacity 1250 VA (5 A/250 V AC), and operating temperature range –10 °C to +55 °C. The manual details the input and output circuits, wiring connections, and ambient condition limits for reliable installation and use.
| Maximum switching frequency (100 VA load) | 60 /min |
|---|---|
| Maximum switching frequency (1000 VA load) | 6 /min |
| Insulation voltage | 250 V AC |
| Supply voltage | 24 V AC/DC, 100‑240 V AC |
| Rated frequency | 48‑63 Hz |
| Switching capacity | 1250 VA (5 A / 250 V AC) |
| Ambient temperature range | -10 °C to +55 °C |
| Relative humidity range | 15 % to 85 % |
| Pollution degree | Class 3K3 |
The FSM10 is mounted in a front‑panel aperture of 45 mm × 45 mm.
The device offers eight selectable functions.
It can be powered from 24 V AC/DC or from 100 V to 240 V AC.
The timer can switch up to 1250 VA (5 A at 250 V AC).
