The OCTO series time relay is an electronic component used for time delay control in industrial control, with 4 functions, 6 time ranges, 1 switch, 17.5 mm wide, and installed in an installation frame.

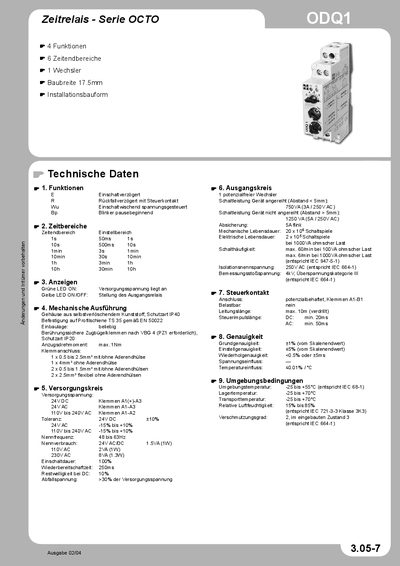

The ODQ1 is a time relay from TELE’s OCTO series. It offers six timing functions, including delayed on, delayed off with contact, voltage‑controlled on‑off, blinking and pause‑beginning modes. The relay is housed in a self‑extinguishing plastic case (IP40) and mounts on a TS‑35 profile rail.
The device operates from 24 V DC, 24 V AC or 110‑240 V AC supplies and provides up to 750 VA switching capacity. It meets IEC standards for temperature range, humidity and over‑voltage category, and includes green and yellow status LEDs for power and output indication. This manual is written in German.
| Supply voltage | 24 V DC, 24 V AC, 110‑240 V AC |
|---|---|
| Switching power (mounted) | 750 VA (3 A / 250 V AC) |
| Mechanical life | 20 × 10⁸ switching cycles |
| Operating temperature range | -25 °C to +55 °C |
