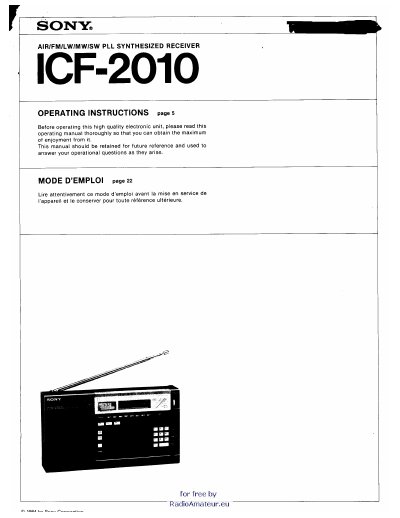

This manual provides the necessary information to install and operate the Sony ICF-2010 portable receiver. It describes the location and function of all controls, explains how to power the unit with internal D‑cell batteries, an AC adaptor, or a car battery cord, and details the procedures for setting the clock, timers, and various tuning modes (direct, manual, scan, memory, and memory‑scan). Instructions for connecting external antennas, using the recording jack, and maintaining the device are also included.
Technical specifications, optional accessories, and a troubleshooting guide are provided at the end of the document. The specifications cover frequency ranges for FM, AM, and AIR bands, power output, battery life, dimensions, and weight. The troubleshooting section lists common problems and recommended checks before seeking service from a Sony dealer.
| FM frequency range | 76‑108 MHz |
|---|---|
| AIR frequency range | 116‑136 MHz |
| AM frequency range | 150‑29 999.9 kHz |
| Power output | 380 mW at 10 % harmonic distortion |
| Battery life (FM reception) | ≈ 40 hours |
| Battery life (AM/AIR reception) | ≈ 30 hours |
| Dimensions | 288 × 159 × 52 mm |
| Weight | ≈ 1.7 kg |
| Computer/clock power requirement | 3 V DC |
