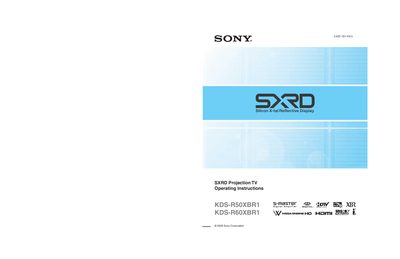

Sony KDS-R50XBR1 / KDS-R60XBR1 Projection TV Operating Instructions

This document is the operating instructions of Sony KDS-R50XBR1 TV

Brand: SONY
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 120
File format: PDF
File size: 3.7 MB
Published: 02 May, 2012
Updated: 30 September, 2023
MD5 checksum: FFAC9464376EE74A78ED3586EA2A7205
PDF: Sony KDS-R50XBR1 / KDS-R60XBR1 Projection TV Operating Instructions PDF

About this manual

This manual provides the operating instructions for Sony's KDS-R50XBR1 and KDS-R60XBR1 SXRD projection TVs. It includes safety warnings, installation guidelines, connection options, remote‑control functions, lamp replacement procedures, and troubleshooting tips.

Key sections cover important safety instructions, proper installation and mounting, video and audio connections (including HDMI, i.LINK, and CableCARD), use of the remote control and memory stick, projection lamp maintenance, and service information.

What's inside

Safety Instructions
Installation and Mounting
Remote Control Operation
Projection Lamp Replacement
Video and Audio Connections
Memory Stick Usage
Troubleshooting

Specifications

Power Supply	120 V AC
Operating Temperature Range	41°F (5°C) to 95°F (35°C)
Light Source	Projection lamp (replace when indicator blinks red or image darkens)
CableCARD Compatibility	Supports CableCARD™ for encrypted digital cable

Frequently asked questions

How do I know when to replace the projection lamp?

Replace the lamp when the lamp‑replacement indicator on the front panel blinks red, the screen becomes dark, or no image appears after prolonged use.

What voltage should be used to power the TV?

The TV should be operated on 120 V AC.

What temperature range is safe for operating the TV?

The TV can be used safely between 41 °F (5 °C) and 95 °F (35 °C).
