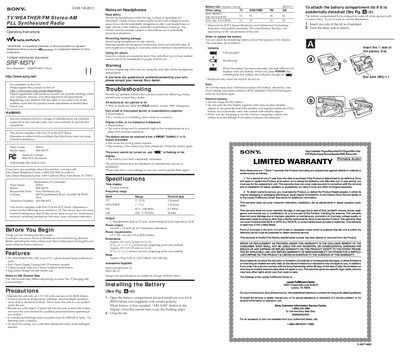

This document is the operating instructions for SONY SRF-M37V WALKMAN
The SRF-M37V is a portable TV/Weather/FM/AM radio with PLL‑synthesized tuning, 25 memory presets and an ergonomic belt‑clip design. The manual explains how to install the AAA battery, set the clock, preset stations, and adjust reception, as well as safety precautions for headphone use and battery handling.
Technical specifications, troubleshooting tips, and warranty details are provided, along with instructions for changing the AM channel step, using the HOLD lock function, and attaching the belt clip. The document also lists accessories supplied and outlines the limited one‑year warranty for the product.
| FM frequency range | 87.5 – 108 MHz |
|---|---|
| AM frequency range | 930 – 1710 kHz |
| Power requirements | 1.5 V DC, one AAA (R03) battery |
| Dimensions (W×H×D) | Approx. 83 x 63 x 32 mm |
| Mass | Approx. 94 g |
| Headphone jack | 3.5 mm stereo, 24 Ω load |
| Power output per channel | 2.8 mW at 10 % harmonic distortion |
Open the battery compartment lid, insert one size AAA (R03) battery with the correct polarity, and close the lid.
You can store up to 10 FM stations (5 per FM1 and FM2) and up to 5 stations each for AM, TV, and WEATHER.
