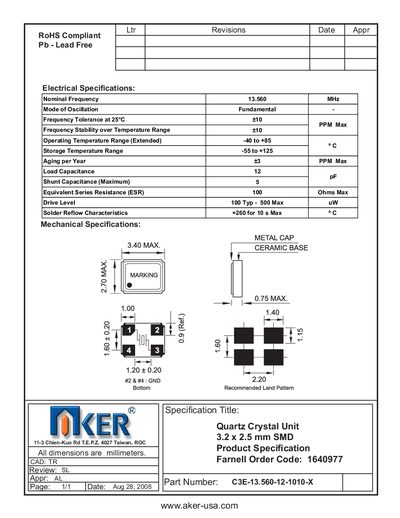

This is a product specification sheet for C3E-13.560-12-1010-X quartz crystal unit. It provides detailed information about the product's features and specifications, including frequency, operating temperature range, storage temperature range, etc.
The AKER C3E-13.560-12-1010-X is a surface‑mount quartz crystal unit (3.2 × 2.5 mm) designed for 13.560 MHz operation. It features a load capacitance of 12 pF, shunt capacitance up to 5 pF, and an ESR of 100 Ω max.
The device complies with RoHS, operates from –40 °C to +85 °C (extended storage –55 °C to +125 °C), and offers a frequency tolerance of +10 ppm at 25 °C with stability of +10 ppm over temperature. Drive level ranges from 100 µW typical to 500 µW max, and aging is limited to +3 ppm per year.
| Nominal Frequency | 13.560 MHz |
|---|---|
| Frequency Tolerance at 25°C | +10 ppm |
| Frequency Stability over Temperature | +10 ppm Max |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -55 °C to +125 °C |
| Aging per Year | +3 ppm Max |
| Load Capacitance | 12 pF |
| Shunt Capacitance (Maximum) | 5 pF |
| Equivalent Series Resistance (ESR) | 100 Ω Max |
| Drive Level | 100 µW typical – 500 µW max |
| Solder Reflow Characteristics | +260 °C for 10 s max |
| Package Size | 3.2 × 2.5 mm SMD |
The nominal frequency is 13.560 MHz.
It operates from –40 °C to +85 °C.
The load capacitance is 12 pF.
The part number is C3E-13.560-12-1010-X.
