This is a clock oscillator with a frequency of 16.000MHz, an operating temperature range of -40 to +85 degrees Celsius, and a voltage of 3.3±5%VDC.
This clock oscillator delivers a nominal frequency of 16.000 MHz with temperature stability of 50 ppm max and an aging rate of +3 ppm per year. It operates over an extended temperature range of –40 °C to +85 °C and requires a 3.3 V supply drawing up to 7 mA.

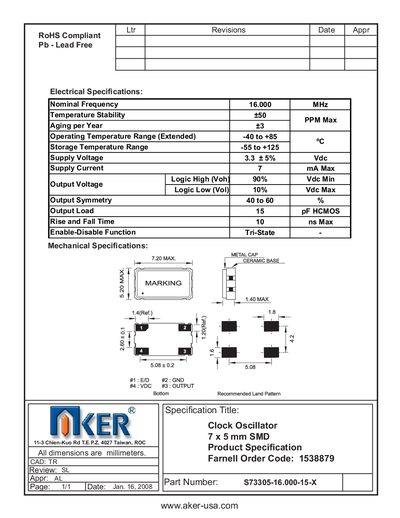

The device is supplied in a 7 × 5 mm metal‑cap SMD package with a ceramic base. Pin assignments include GND, VDC, and OUTPUT, and the recommended land pattern is provided. Ordering information such as the Farnell order code (1538879) and part number $73305-16.000-15-X are listed.
| Nominal Frequency | 16.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range | -40 to +85 °C |
| Supply Voltage | 3.3 V |
| Supply Current | 7 mA Max |
| Logic High Output Voltage | 90% Vde Min |
| Logic Low Output Voltage | 10% Vde Max |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
| Output Symmetry | 40 to 60 % |
The nominal frequency is 16.000 MHz.
It requires a 3.3 V supply.
The device operates from –40 °C to +85 °C.
The maximum supply current is 7 mA.
