This is a specification document about CAA-8.000-18-3050-X, which mainly includes product frequency, temperature range, frequency stability, etc.

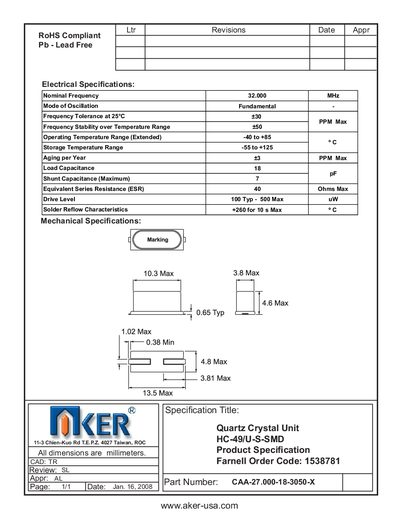

This one‑page datasheet describes the AKER HC-49/U-S-SMD quartz crystal unit, a 32 MHz component intended for use in timing and frequency‑control applications. It lists the key electrical parameters, mechanical dimensions, and compliance information.
The document also includes RoHS compliance, solder reflow limits, and ordering details such as the part number CAA-27.000-18-3050‑X and the Farnell order code 1538781.
| Nominal Frequency | 32.000 MHz |
|---|---|
| Mode of Oscillation | Fundamental |
| Frequency Tolerance at 25°C | +30 ppm |
| Frequency Stability over Temperature Range | +50 PPM Max |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Aging per Year | +3 PPM Max |
| Load Capacitance | 18 pF |
| Shunt Capacitance (Maximum) | 7 pF |
| Equivalent Series Resistance (ESR) | 40 Ω Max |
| Drive Level | 100 µW Typ – 500 µW Max |
| Solder Reflow Characteristics | +260 °C for 10 s Max |
| Part Number | CAA-27.000-18-3050-X |
The nominal frequency is 32.000 MHz.
It operates from –40 °C to +85 °C (extended range).
The required load capacitance is 18 pF.
The maximum equivalent series resistance is 40 Ω.
