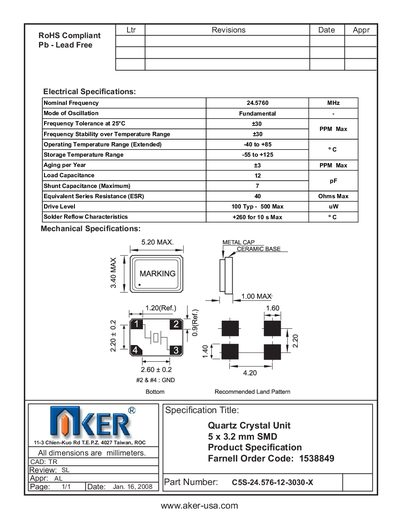

This document is the product specification of C5S-24.576-12-3030-X quartz crystal unit, including electrical and mechanical characteristics
The C5S-24.576-12-3030-X is a 5 × 3.2 mm SMD quartz crystal unit offered by AKER. It is designed for precise frequency generation in electronic circuits and complies with RoHS requirements.
Key electrical specifications include a nominal frequency of 24.5760 MHz, frequency tolerance of +30 ppm at 25 °C, and a stability of +30 ppm over temperature. Mechanical data list the package size and recommended land pattern, while temperature ranges cover -40 °C to +85 °C for operation and -55 °C to +125 °C for storage.
| Nominal Frequency | 24.5760 MHz |
|---|---|
| Frequency Tolerance (25 °C) | +30 ppm |
| Frequency Stability over Temperature | +30 ppm Max |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -55 °C to +125 °C |
| Aging per Year | +3 ppm Max |
| Load Capacitance | 12 pF |
| Shunt Capacitance (Maximum) | 7 pF |
| Equivalent Series Resistance (ESR) | 40 Ω Max |
| Drive Level | 100 µW Typ – 500 µW Max |
| Solder Reflow Characteristics | +260 °C for 10 s Max |
| Package Size | 5 × 3.2 mm SMD |
The nominal frequency is 24.5760 MHz.
It operates from –40 °C to +85 °C.
The load capacitance is 12 pF.
The crystal is a 5 × 3.2 mm SMD package.
