AC102-1A/2C/3C Multi-Purpose Accelerometer is CTC’s Most Popular Sensor! High Performance in a Low Cost Sensor Standard 2 Pin MIL Connection Perfect for Thousands of Applications
The AC102 Series accelerometers from CTC are marketed as high‑performance, low‑cost sensors with a standard 2‑pin MIL connector, making them suitable for a wide range of applications. They are affordably priced, hermetically sealed, and available in several model variants such as AC102‑1A, AC102‑20, and AC102‑36.

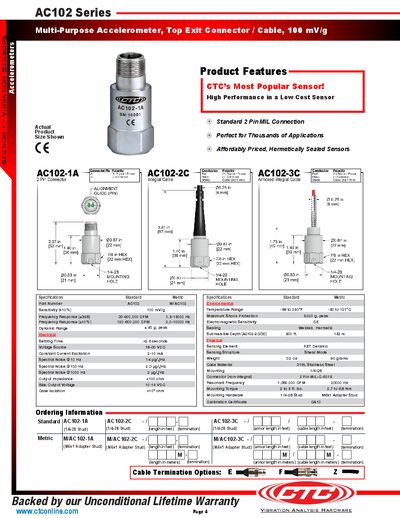

The datasheet lists key specifications including a sensitivity of 100 mV/g, temperature range from –58 °F to 250 °F (‑50 °C to 121 °C), frequency response up to 900 kCPM (0.5‑15 kHz), maximum shock protection of 5,000 g peak, and a 316L stainless‑steel case. Ordering information, cable termination options, and warranty details are also provided.
| Sensitivity | 100 mV/g |
|---|---|
| Temperature Range | -58 to 250 °F (-50 to 121 °C) |
| Frequency Response (3 dB) | 30‑900,000 CPM (0.5‑15,000 Hz) |
| Maximum Shock Protection | 5,000 g peak |
| Case Material | 316L Stainless Steel |
| Weight | 3.2 oz (90 g) |
| Output Impedance | <100 Ω |
The sensor operates from –58 °F to 250 °F (‑50 °C to 121 °C).
It can withstand up to 5,000 g peak shock.
The case is made of 316L stainless steel.
The sensor has a sensitivity of 100 mV/g.
