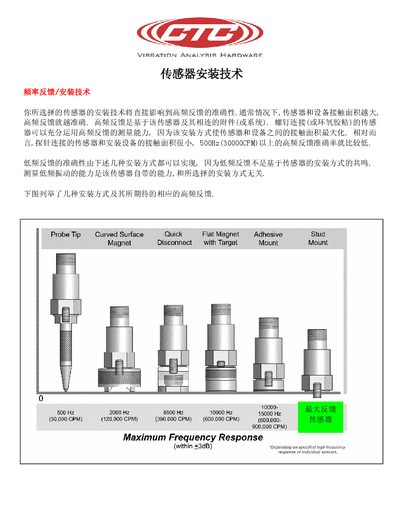

CTC Sensor Installation Technology Manual
This manual explains the installation techniques for CTC vibration analysis sensors. It emphasizes that larger contact areas between the sensor and the mounting surface improve high‑frequency response, while smaller contact areas reduce it.
Various probe tip options are listed, including curved surface, quick flat, magnet, adhesive, and stud mounts. Frequency response charts show performance from 500 Hz up to 15 kHz, illustrating how different mounting methods affect sensor accuracy. This manual is written in Japanese.
Covers: Installation Techniques · Probe Tip Types · Frequency Response · Mounting Methods · Performance Charts
