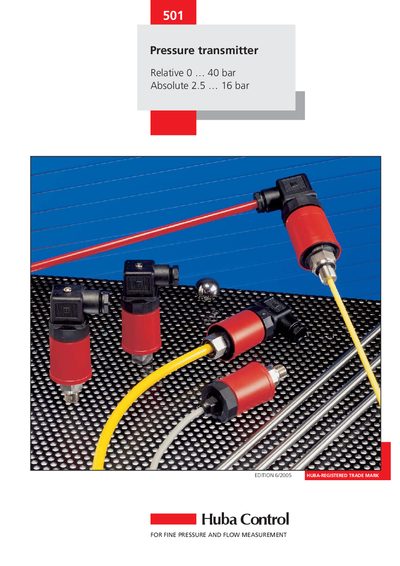

This document provides a technical overview of the 501 series pressure transmitter, including its compact construction, ceramic sensor technology, and high resistance to extreme temperatures and pressures.
The Huba Control 501 pressure transmitter provides calibrated and amplified sensor signals with standard current outputs. It features a compact ceramic sensor, high temperature resistance, and robust construction suitable for fine pressure and flow measurement.
The manual includes technical overview, pressure ranges up to 40 bar (90 bar overload), accuracy better than ±0.5 % FS, various output options (0‑5 V, 1‑6 V, 0‑10 V, 4‑20 mA, 10‑90 %), and installation details such as thread connections and wiring.
| Pressure range | 0–40 bar (max 90 bar overload) |
|---|---|
| Response time | < 5 ms |
| Weight | 50 g (inside thread) / 70 g (outside thread) |
It measures up to 40 bar, with an overload capability of up to 90 bar.
It can be fitted with an inside thread G 1/4 or an outside thread DIN 3852 form E, plus various connector types.
