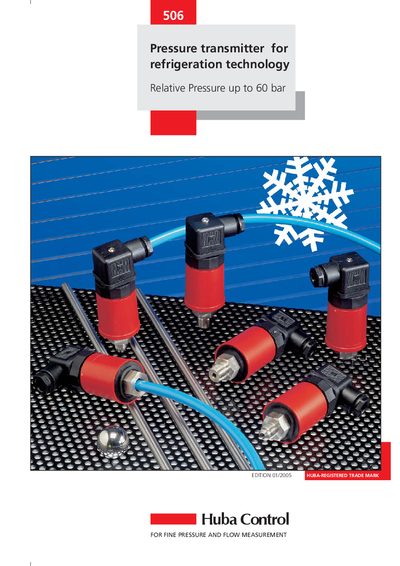

The 506 pressure transmitter is specially developed for use in the industrial refrigeration technology. It features calibrated and amplified sensor signals which are available as standardised current outputs.
The 506 pressure transmitter from Huba Control is designed for fine pressure and flow measurement in industrial refrigeration technology. It offers calibrated and amplified sensor signals with standardized current and voltage outputs.
Key features include a compact ceramic‑sensor construction, high temperature resistance, multiple output ranges (0‑5 V, 1‑6 V, 0‑10 V, 4‑20 mA, 10‑90 %), and IP‑65 rated connectors. The device is factory‑calibrated, provides a response time under 5 ms, and complies with EMC standards EN 61000‑6‑1/6‑3.
| Pressure range | 7 bar to 60 bar (overload up to 80 bar) |
|---|---|
| Operating temperature | -40 °C to +80 °C |
| Response time | <5 ms |
| Output signals | 0‑5 V, 1‑6 V, 0‑10 V, 4‑20 mA, 10‑90 % (all 11‑33 VDC supply) |
| Materials in contact with medium | Ceramic / Stainless steel 1.4305 |
| Calibration | Factory calibrated |
It measures relative pressure from 7 bar up to 60 bar, with an overload capability up to 80 bar.
The device provides 0‑5 V, 1‑6 V, 0‑10 V, 4‑20 mA, and 10‑90 % outputs, all powered from 11‑33 VDC.
The transmitter can operate from –40 °C to +80 °C.
