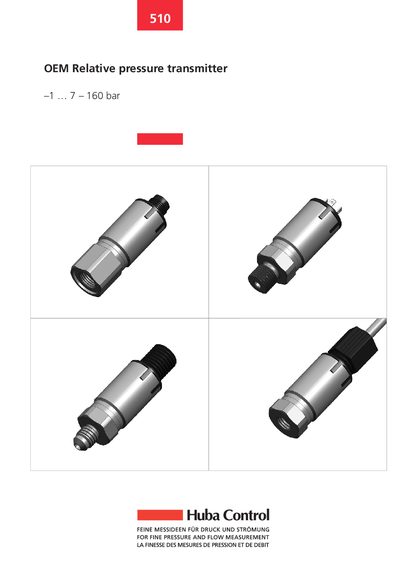

510 OEM pressure transmitter, suitable for industrial refrigeration technology applications, can be used for all refrigeration gases and media, including ammonia.
The Huba 510 is a compact OEM relative pressure transmitter designed for industrial refrigeration, capable of measuring gases and media including ammonia across a wide pressure range. It features a thick‑film sensor welded to a special‑grade steel cell, providing high accuracy, excellent EMC performance and IP67 protection.
The manual covers technical data such as pressure range, overload tolerance, dynamic response, electrical supply options (0‑5 VDC to 33 VDC, 4‑20 mA), connector types (Quickon, M12×1, mini‑DIN), installation arrangements, and compliance with CE, UL and various shock and vibration standards.
| Pressure range | -1 to 160 bar |
|---|---|
| Overload tolerance | 5.0 × measuring range (static), 3.0 × measuring range (dynamic) |
| Dynamic response time | <2 ms (typ. 1 ms) |
| Electrical supply (3‑wire) | 0‑5 VDC to 33 VDC |
It measures from –1 bar up to 160 bar.
The typical response time is about 1 ms, with a maximum of less than 2 ms.
The device can be powered from 0 VDC up to 5 VDC or from 8 VDC to 33 VDC in a 3‑wire configuration.
