The 692 differential pressure transmitter features adjusted and amplified sensor signals which are available as standardised voltage or current outputs. Various application-specific pressure and electrical connections and housing materials suitable for different media can be provided.

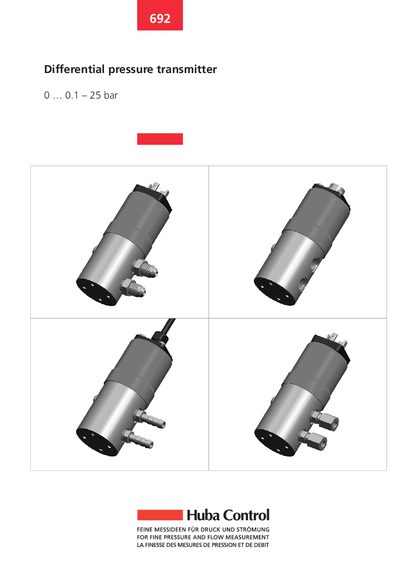

The Huba Control 692 differential pressure transmitter provides precise pressure and flow measurement for liquids and neutral gases. It features a ceramic sensing element, modular housing options, and standardised voltage or current outputs.
The manual includes technical overviews, accuracy tables, dimensional drawings, EMC test results, mounting instructions, and a list of accessories and connection options.
| Pressure range | 0…0.1—25 bar |
|---|---|
| Temperature range (operating) | 15 °C … +85 °C |
| IP protection rating | IP65 |
| 3‑wire output voltage options | 0‑5 VDC, 11‑33 VDC, 24 VAC |
| 2‑wire output current options | 4‑20 mA, 11‑33 VDC |
| Weight | Approx. 430 g |
It covers a pressure range from 0 … 0.1 bar up to 25 bar, with overload options available on the order‑code selection table.
The device is protected to IP65, suitable for harsh environments.
