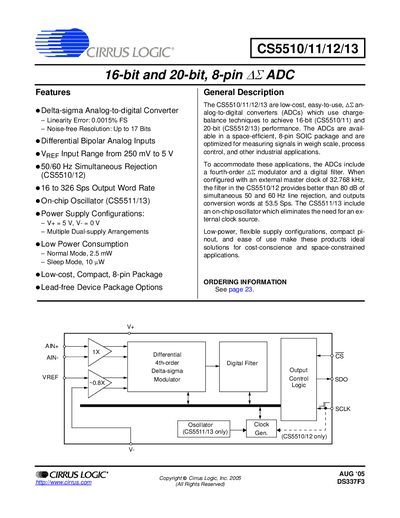

The CS5510/11/12/13 are low-cost, easy-to-use, ∆Σ analog-to-digital converters (ADCs) which use charge-balance techniques to achieve 16-bit (CS5510/11) and 20-bit (CS5512/13) performance. The ADCs are available in a space-efficient, 8-pin SOIC package and are optimized for measuring signals in weigh scale, process control, and other industrial applications. To accommodate these applications, the ADCs include a fourth-order ∆Σ modulator and a digital filter. When configured with an external master clock of 32.768 kHz, the filter in the CS5510/12 provides better than 80 dB of simultaneous 50 and 60 Hz line rejection, and outputs conversion words at 53.5 Sps. The CS5511/13 include an on-chip oscillator which eliminates the need for an external clock source. Low-power, flexible supply configurations, compact pinout.
The CS5510/11/12/13 family are low‑cost, 8‑pin delta‑sigma analog‑to‑digital converters offering 16‑bit (CS5510/11) and 20‑bit (CS5512/13) performance. They are intended for weigh‑scale, process‑control and other industrial applications, featuring a fourth‑order modulator, digital filter, and flexible supply options.
The document provides detailed analog and digital characteristics, dynamic performance, absolute maximum ratings, switching timing, ordering information, and package dimensions for each variant, along with recommended supply configurations and power‑consumption figures.
| Linearity Error (CS5510/11) | 0.0015% FS |
|---|---|
| Linearity Error (CS5512/13) | 0.0007% FS |
| Noise‑free Resolution | Up to 17 Bits |
| Supply Voltage Configuration | V+ = 5 V, V‑ = 0 V (dual‑supply options available) |
| Power Consumption (Normal Mode) | 2.5 mW |
| Power Consumption (Sleep Mode) | 10 µW |
| Output Word Rate (CS5511/13) | 107 Sps (up to +50%) |
| Analog Input Range | 0.250 V to 5 V |
| Package | 8‑pin SOIC |
The CS5510/11 achieves a typical linearity error of 0.0015 % full‑scale.
In normal operation the device consumes about 2.5 mW, while in sleep mode it draws roughly 10 µW.
The ADC can be powered with a single‑supply configuration of V+ = 5 V and V‑ = 0 V, and also supports multiple dual‑supply arrangements.
The CS5511/13 provides an output word rate of 107 samples per second, with up to a 50 % increase possible.
