Cirrus Logic EDB9315A Engineering Development Board Technical Reference Manual

This document is the EP9315 EDB9315A Engineering Development Board Technical Reference Manual released by Cirrus Logic in 2005. The development board is an enhanced universal platform SoC processor with high performance and multifunctionality.

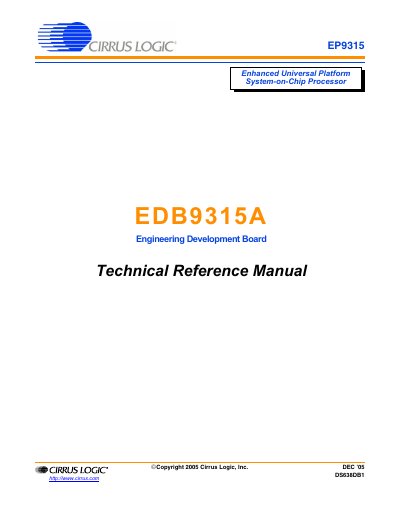

Cirrus Logic EDB9315A Engineering Development Board Technical Reference Manual - cover page
Brand
Cirrus Logic
Category
Other device
Document type
User Manual
Language
English
Pages
44
File format
PDF
File size
2 MB
Published
02 May, 2012
Updated
28 September, 2023
MD5 checksum
3D379D4119C9DD6FABD324F6DF4408D5

About this manual

This manual describes the features and basic operation of the EDB9315A Engineering Development Board, an evaluation platform for the EP9315 System‑on‑Chip. It lists the kit contents, board layout, and the available peripherals such as USB, Ethernet, VGA, IDE, and audio interfaces.

The document also covers getting started procedures, cable connections, power‑up steps, and software tools for downloading and programming the board, including Linux image flashing from a Windows PC and HyperTerminal configuration.

What's inside

  • EDB9315A Kit Contents
  • Introducing the EDB9315A Engineering Development Board
  • Getting Started
  • EDB9315A Circuit Description
  • Software
  • Developer’s User Forum
  • Other Useful Information
  • Appendix A. Schematics
  • Appendix B. Programming Linux Images into Flash from a Windows PC

Specifications

ProcessorEP9315 running at 200 MHz
SDRAM64 MByte
Flash Memory16 MByte NOR
USB Host PortsTwo USB 2.0 full‑speed host ports
USB Device InterfaceUSB 2.0 high‑speed device
AudioAudio Out and Audio In connectors
UARTsThree UARTs
Ethernet10/100 Mbps Ethernet interface
Consumer IRConsumer IR (CIR) interface
LCD InterfaceLCD interface with touch‑screen support
Power Supply+5 V, 4 A, 110 V/220 V AC

Frequently asked questions

How can I identify pin 1 on the IDE connector?

The IDE cable has a red wire indicating pin 1, and the IDE connector (JP5) pin 1 is located toward the power switch S2; silkscreen markings also show the corner pins.

What serial port settings should I use for the board’s console?

Configure the PC serial port for 38400 baud, 8 data bits, no parity, 1 stop bit, no flow control for WinCE, or 57600 baud for Linux.
