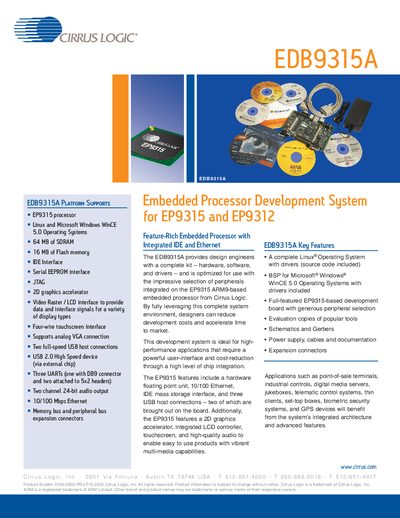

EDB9315A is an embedded processor development system produced by Cirrus Logic. The system integrates the EP9315 processor and supports Linux and Microsoft Windows WinCE 5.0 operating systems. It features 64MB of SDRAM and 16MB of Flash memory, and provides IDE interface, serial EEPROM interface, JTAG interface, 2D graphics accelerator, and more. Additionally, it supports video raster/LCD interface for a variety of display types, four-wire touchscreen interface, analog VGA connection, two full-speed USB host connections, USB 2.0 High Speed device interface, three UARTs, two channel 24-bit audio output, 10/100 Mbps Ethernet, and more. The EDB9315A provides a complete kit - hardware, software, and drivers - to help design engineers reduce development costs and accelerate time to market.
The EDB9315A development system integrates the EP9315 ARM9‑based processor with IDE, Ethernet, USB, graphics, audio, and touchscreen capabilities, offering a complete hardware and software kit for designers.
The board includes 64 MB SDRAM, 16 MB Flash, IDE and serial EEPROM interfaces, JTAG, a 2D graphics accelerator, video/LCD output, four‑wire touchscreen, analog VGA, two full‑speed USB host ports, a USB 2.0 high‑speed device port, three UARTs, two‑channel 24‑bit audio output, 10/100 Mbps Ethernet, and expansion connectors, and ships with Linux and Windows CE 5.0 operating system images and drivers.
| SDRAM | 64 MB |
|---|---|
| Flash Memory | 16 MB |
| IDE Interface | Integrated |
| Serial EEPROM Interface | Integrated |
| Graphics Accelerator | 2D |
| USB Connectivity | 2 USB host (full‑speed), 1 USB 2.0 device |
| Ethernet | 10/100 Mbps |
| Audio Output | Two‑channel 24‑bit |
| UARTs | Three (one DB9, two header) |
The board supports Linux and Microsoft Windows WinCE 5.0 operating systems.
The board provides a two‑channel 24‑bit audio output.
