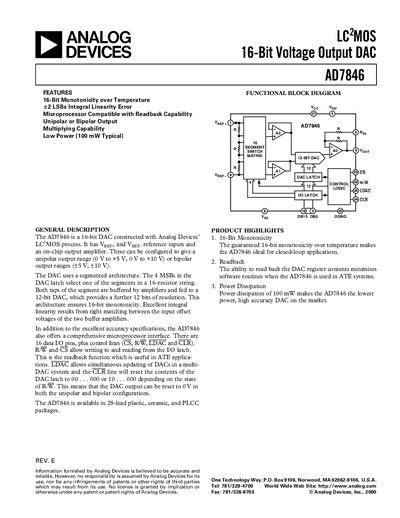

This document is about AD7846 16-Bit Voltage Output DAC.
The AD7846 is a 16‑bit DAC built with Analog Devices’ LC‑MOS process. It offers both unipolar (0 V to +5 V or 0 V to +10 V) and bipolar (‑5 V to +5 V or ‑10 V to +10 V) output configurations, a segmented architecture for monotonicity, and a microprocessor‑compatible interface with read‑back capability.
The device is supplied in 28‑lead plastic DIP, ceramic DIP, and PLCC packages, dissipates only about 100 mW typical, and provides a full set of timing and absolute‑maximum ratings for reliable system design.
| Resolution | 16 bits |
|---|---|
| Power Dissipation (typical) | 100 mW |
| Output Voltage Swing | Vss+4 to Vss‑4 V max |
| Digital Input High Voltage | 2.4 V min |
| Package Options | Plastic DIP N‑28A, Ceramic DIP Q‑28, PLCC P‑28A |
The AD7846 provides a 16‑bit resolution.
Typical power dissipation is 100 mW.
The AD7846 is offered in 28‑lead plastic DIP, ceramic DIP, and PLCC packages.
