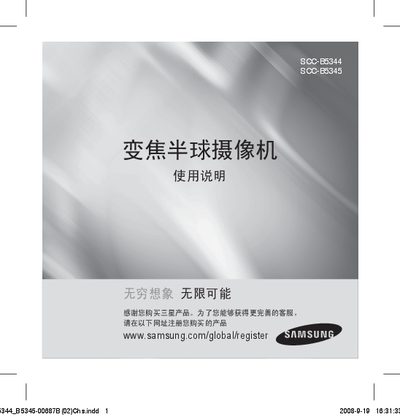

This is a product manual for SCC-B5344 SCC-B5345 zoom hemispherical camera, mainly introducing the characteristics and features of the product, safety precautions, and information on harmful substances in the product
This manual begins with important safety warnings, including protection against fire, water, extreme temperatures, and proper handling of the camcorder's internal components. It also outlines installation guidelines such as securing the unit to a wall or ceiling and avoiding overload of power sources.
The document then describes the camcorder’s main functions, component layout, and operating procedures. Technical specifications such as power requirements, video standards, sensor type, and physical dimensions are listed for reference. This manual is written in Japanese.
| Power Supply | DC 12V, 10W |
|---|---|
| Video Standard | PAL |
| Image Sensor | Super‑HAD CCD |
| Dimensions | 128 mm × 91 mm |
The camcorder operates on a DC 12 V power source with a maximum consumption of 10 W.
