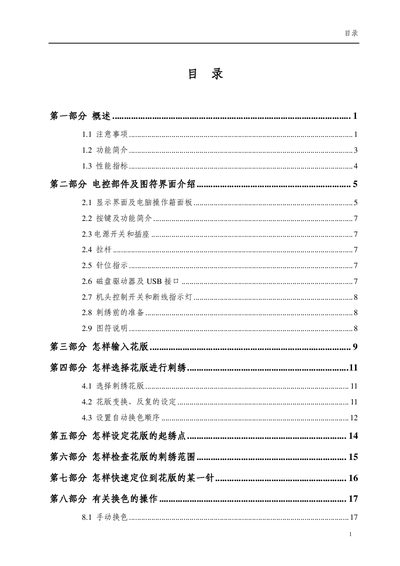

This document is an operation manual for an embroidery machine. The manual first introduces the overview, precautions, features and performance indicators of the embroidery machine. Then it introduces the operation methods of the electronic control components and the graphical interface, including the display interface, key functions, power switch and socket, etc. Next, it provides detailed instructions on the operation steps of inputting, selecting, setting the starting point, and checking the embroidery range of the pattern. In addition, it also introduces the operation methods of color change, thread cutting, speed adjustment, frame movement, pattern management, etc. Finally, it introduces the operation steps of special functions such as specialty embroidery and gold thread embroidery.
This manual provides safety precautions, installation guidelines, and detailed operating instructions for the computer‑controlled embroidery machine. It explains the control panel layout, wiring, grounding requirements, and how to manage patterns, threads and needles.
Technical data such as maximum stitching speed, memory capacity, supported file formats and display specifications are listed, along with troubleshooting tips and maintenance procedures. This manual is written in Chinese.
| Maximum stitching speed | 1100 mpm |
|---|---|
| Maximum needle speed | 850 pm |
| Positioning accuracy | 0.1 mm |
| Stored needle count | 10,000,000 needles |
| Supported pattern file formats | DST and DSB |
| Display size | 104‑inch TFT LCD |
The maximum stitching speed is 1100 stitches per minute.
The positioning accuracy is 0.1 mm.
