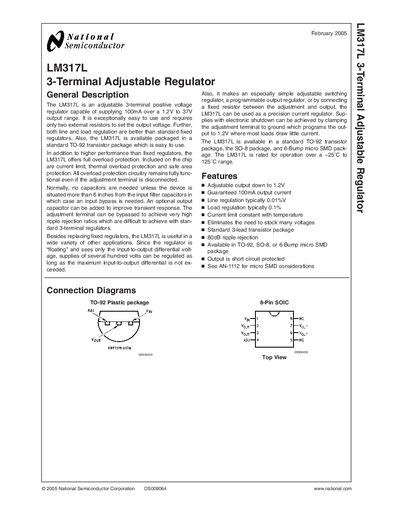

LM317L 3-Terminal Adjustable Regulator General Description
The LM317L adjustable regulator provides a selectable output from 1.2 V to 37 V at up to 100 mA. It is offered in TO‑92, SO‑8, and 6‑Bump micro‑SMD packages and includes internal current limit, thermal overload, and safe‑area protection.
Typical applications include replacing fixed regulators, creating programmable output supplies, precision current sources, and simple switching regulators. The device operates from –25 °C to 125 °C and features high ripple rejection when the adjustment pin is bypassed.
| Maximum output current | 100 mA |
|---|---|
| Line regulation | typical 0.01 %V |
| Load regulation | typical 0.1 %V |
| Ripple rejection | 80 dB |
| Operating temperature range | -25 °C to 125 °C |
| Input‑output voltage differential limit | 40 V |
| Package options | TO‑92, SO‑8, 6‑Bump micro SMD |
The LM317L is guaranteed to deliver up to 100 mA of output current.
Typical line regulation is 0.01 %V.
The device is available in TO‑92, SO‑8, and 6‑Bump micro‑SMD packages.
The LM317L can tolerate a maximum input‑output differential of 40 V.
