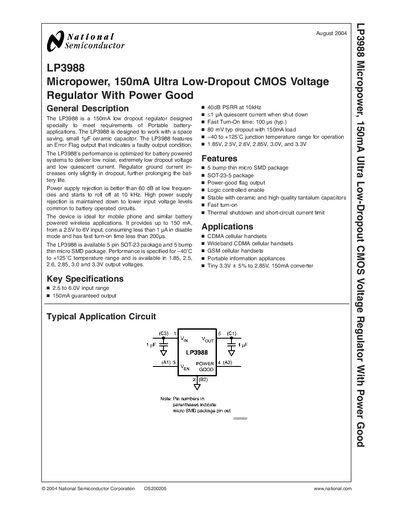

The LP3988 is a 150mA low dropout regulator designed specially to meet requirements of Portable battery- applications. The LP3988 is designed to work with a space saving, small 1µF ceramic capacitor. The LP3988 features an Error Flag output that indicates a faulty output condition. The LP3988’s performance is optimized for battery powered systems to deliver low noise, extremely low dropout voltage and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. Power supply rejection is better than 60 dB at low frequencies and starts to roll off at 10 kHz. High power supply rejection is maintained down to lower input voltage levels common to battery operated circuits. The device is ideal for mobile phone and similar battery powered wireless applications. It provides up to 150 mA, from a 2.5V to 6V input, consuming less than 1 µA in disable mode and has fast turn-on time less than 200µs.
The LP3988 regulator provides up to 150 mA output current over an input range of 2.5 V to 6 V. It features a low dropout voltage (80‑115 mV at 150 mA), ultra‑low quiescent current (as low as 0.1 pA in shutdown), and a power‑good flag for fault detection. The device is offered in SOT‑23‑5 and thin‑micro SMD (TLA) packages and operates from –40 °C to +125 °C.
Typical applications include portable battery‑powered devices such as mobile phones and wireless handsets. The datasheet includes electrical characteristics, absolute maximum ratings, mechanical dimensions, and ordering information for various output‑voltage grades.
| Input voltage range | 2.5 V to 6.0 V |
|---|---|
| Maximum output current | 150 mA |
| Power‑good flag | Open‑drain, active low, requires external pull‑up |
| Thermal shutdown temperature | 160 °C |
The regulator operates with an input voltage from 2.5 V to 6.0 V.
It can deliver up to 150 mA of continuous output current.
