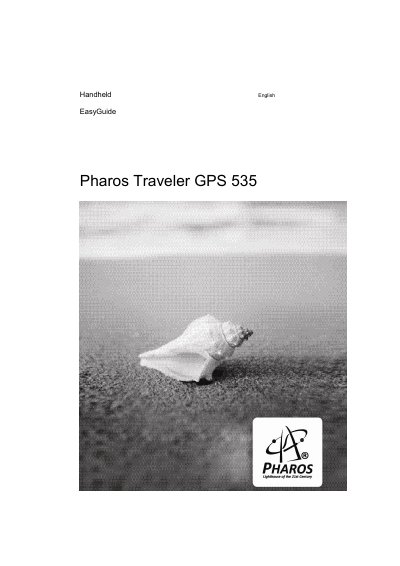

The document provides instructions on operating and configuring the Pharos Traveler GPS 535 EasyGuide, as well as connecting it with other devices and troubleshooting. It also includes technical data and an index of the product.
This manual covers all aspects of using the Pharos Traveler GPS 535 handheld device. It includes safety and important notes, detailed operating procedures, menu adjustments, battery management, and instructions for connecting to PCs, infrared devices, and wireless LAN.
The document also contains a full technical data section with processor, memory, display, power consumption, environmental ratings, and battery specifications, as well as a troubleshooting guide for common issues such as display problems, power failures, and GPS reception.
| Processor | Intel PXA270 312 MHz |
|---|---|
| Main memory | 128 Mbyte ROM, 64 Mbyte RAM |
| Maximum power draw | 10 W (when on with battery charging) |
| Display | 3.5‑inch QVGA (240 × 320) transreflective TFT, 65,536 colors |
| Card slot | Secure Digital I/O / MultiMediaCard |
| Audio ports | Microphone, loudspeaker, 3.5 mm headphones or remote control |
| Data interfaces | IrDA, USB 1.1, RS‑232, IEEE 802.11g WLAN, GPS Sirf Star 3 |
| Dimensions (H × W × D) | 115.7 mm × 70.2 mm × 14.6 mm |
| Weight | ≈ 145 g |
| Battery capacity | 1200 mAh Li‑Ion |
| Battery charging time | up to 3 hours |
| Battery operating time | up to 12 hours (350 h standby) |
| Power adapter input voltage | 100 V – 240 V (auto), 50 Hz – 60 Hz |
| Power adapter output | 5 V ± 5 % at 2.0 A |
Connect the power adapter or a USB port; charging takes up to three hours when the device is not in operation.
The GPS 535 provides Infrared (IrDA), Wireless LAN (IEEE 802.11g), USB 1.1, RS‑232 serial, and GPS Sirf Star 3.
