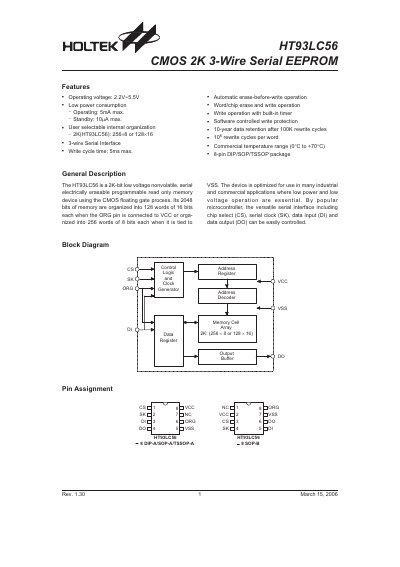

HT93LC56 is a 2K-bit low voltage nonvolatile, serial electrically erasable programmable read only memory device using the CMOS floating gate process. Its 2048 bits of memory are organized into 128 words of 16 bits each when the ORG pin is connected to VCC or organized into 256 words of 8 bits each when it is tied to VSS. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. By popular microcontroller, the versatile serial interface including chip select (CS), serial clock (SK), data input (DI), and data output (DO) can be easily controlled.
The HT93LC56 is a 2‑Kbit low‑voltage non‑volatile serial EEPROM using a CMOS floating‑gate process. It offers 128 × 16‑bit or 256 × 8‑bit memory organization selectable via the ORG pin and operates from 2.2 V to 5.5 V, making it suitable for industrial and commercial applications that require low power consumption.
The datasheet provides comprehensive electrical characteristics such as operating current, standby current, leakage currents, input‑output voltage levels, timing parameters, and package dimensions for the 8‑pin DIP, SOP and TSSOP options. Package and tape‑and‑reel specifications are also listed for automated assembly.
| Operating voltage | 2.2 V ~ 5.5 V |
|---|---|
| Operating current (TTL) | 5 mA max |
| Write cycle time | 5 ms max |
| Clock frequency (fSK) | up to 2 MHz |
The device operates from 2.2 V to 5.5 V.
The write cycle time is specified as 5 ms maximum.
